SUGA Test Instruments manufactures world-class weather meters, accelerated corrosion instruments and instrumental colour appearance product solutions.
Large capacity model
GX90 is able to test 126 specimens at one time. The newly developed 9.0kW long arc xenon lamp is World's No.1 long-life light source, Lamp life: 3000 hours. In case of test condition 60W/m2 (300-400nm), Daylight Filter, BPT63°C, 50%rh.
*Product image for illustration purposes only.
A compact model with excellent cost performance
This model is used for wide range of materials, such as fabrics, wrappings, and cases for cosmetics.
This is the world wide model
GX75 is a global general-purpose model compatible with international standard. It is a compact model with high performance with its 7.5kW Water-Cooled Xenon long life Arc lamp and filters with the Irradiance and Temperature Direct Specimen-Plane Control System.

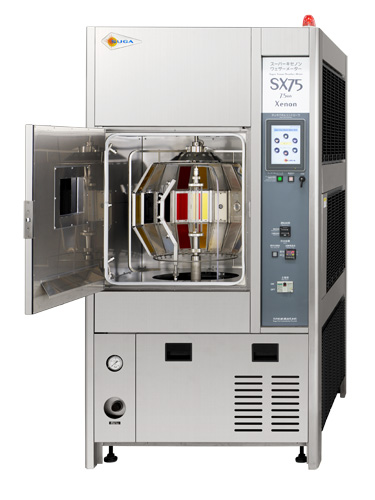

The paramount of world standard
This model is capable of super-accelerated tests with ultraviolet irradiance three times stronger (180W/m2) than that of sunlight, meeting the expectation of today's high-speed product development.

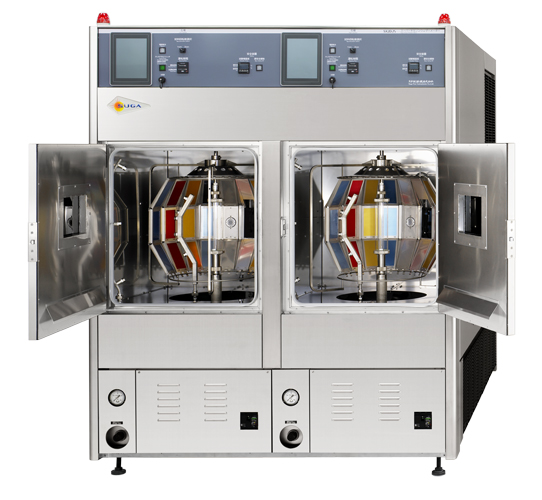

Two test chambers are set side by side. Different test conditions can be performed at the same time. Possible to combine with other type of light sources.

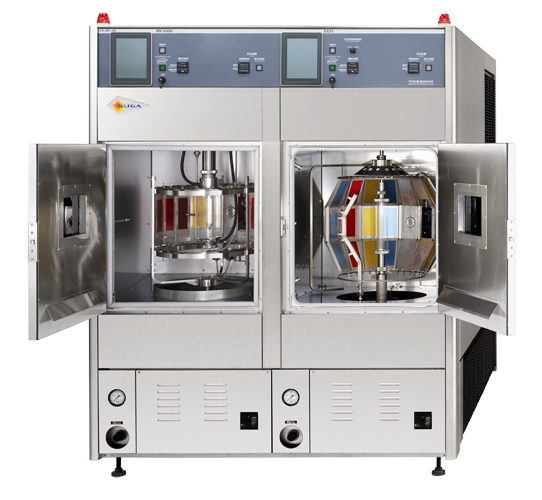

Two independent chambers enable combination of different light sources.

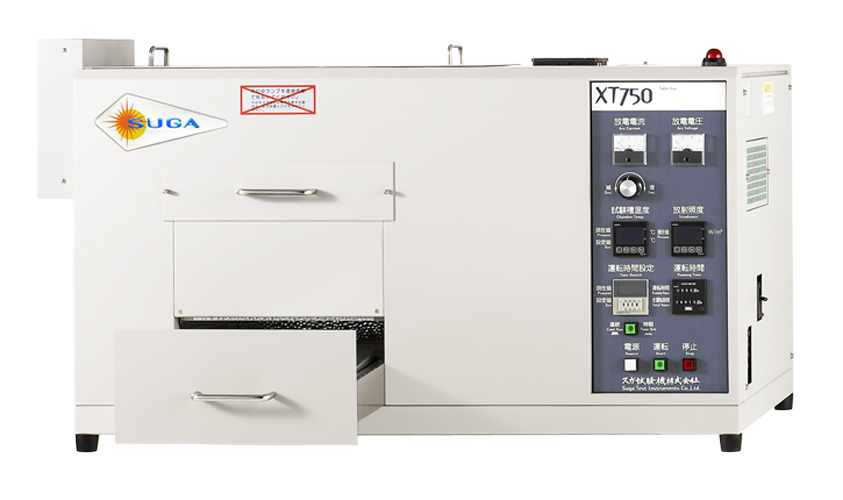

A tabletop Xenon Fade Meter
This is a tabletop weather meter optimal for small specimens such as medical products, paper, cosmetics, pharmaceuticals, food, and stationery.

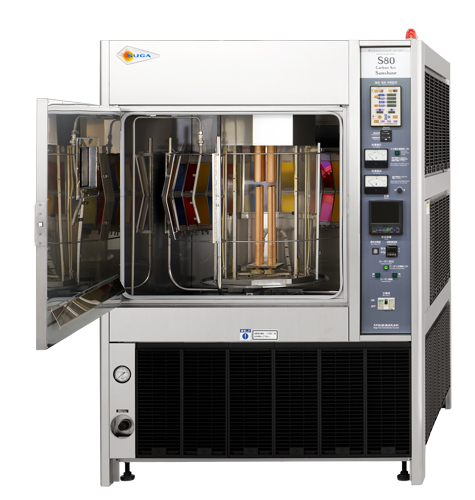

The basic sunshine model cultivated by history
S80 is capable of approximately 78 hours of continuous irradiation using a total of eight sunshine carbon arc rods, with four sets on both the top and the bottom of the thest chamber. It is also capable of automatically running the light and light + spray cycles.
The standard model for textile colour fastness tests
This cost-efficient model uses wicks to control humidity at below 50%rh level, and controls temperature by introducing ambient air via opening and closing of the air damper.

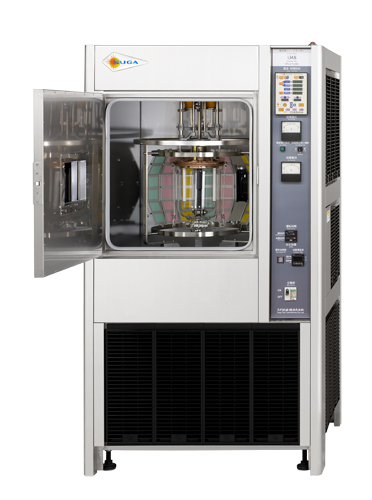

Performs tests other light sources just can't do
Suga UV Long-Life Auto Fade Meter is extensively used for colour fastness test of textile materials. An enclosed carbon arc lamp as the light source has the longest history of use among weathering test apparatus. It has an intense energy in the UV range (around 388 nm) and can be lighted continuously for 48 hours. U48AU has an automatic air control system with an air control value to mix circulating chamber-air and introduced ambient-air. It also includes a vaporizer, which allows for a highly precise control of temperature and humidity.

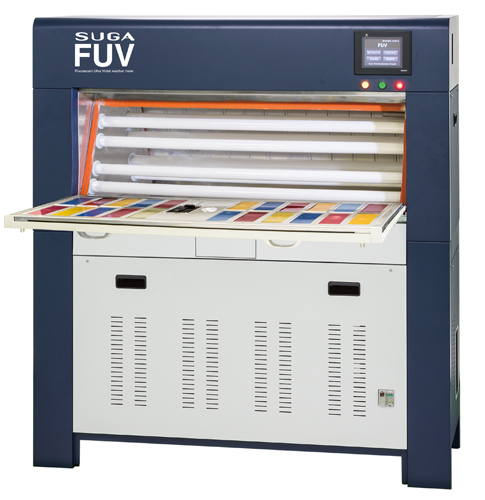

Most effective for ultraviolet deteriorating tests for coatings and olastics
This model provides high acceleration with cyclic test of UV light and dark (dew) cycles. Its light source FS-40 includes a light enagy loss preevention system developed by Suga.
